AIR CONDITIONERS
LG Split Air Conditioner 1.0 Ton 126HC
LG Split Air Conditioner 1.0 Ton I12CGH DUALCOOL Inverter
LG Split Air Conditioner 1.5 Ton BSNQ186K3A1 Dual Inverter
Specifications of LG Split Air Conditioner 1.5 Ton BSNQ186K3A1 Dual Inverter
- Capacity: 1.5 Ton
- AC Functionality: Heating & Cooling
- AC Design: Wall Mount
- Inverter Type: DC
- Cooling Capacity: 18000 BTU
- Heating Capacity: 18000 BTU
- Gas: R 410a
- Voltage: 140 180 V
- Detachable Bottom Cover
- Tropical Dual Inverter Compressor
- works even 65 c
- Auto Cleaning
- Dual Protection Filter
- Silent Mode

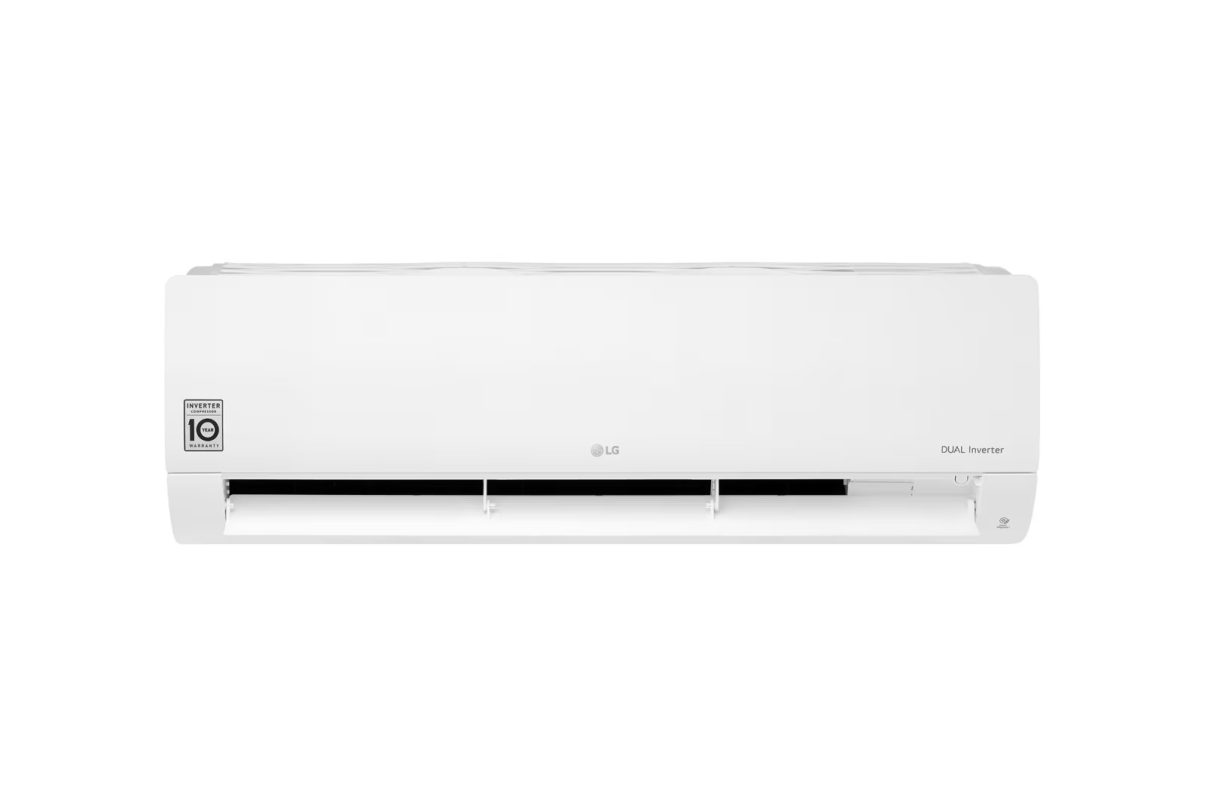

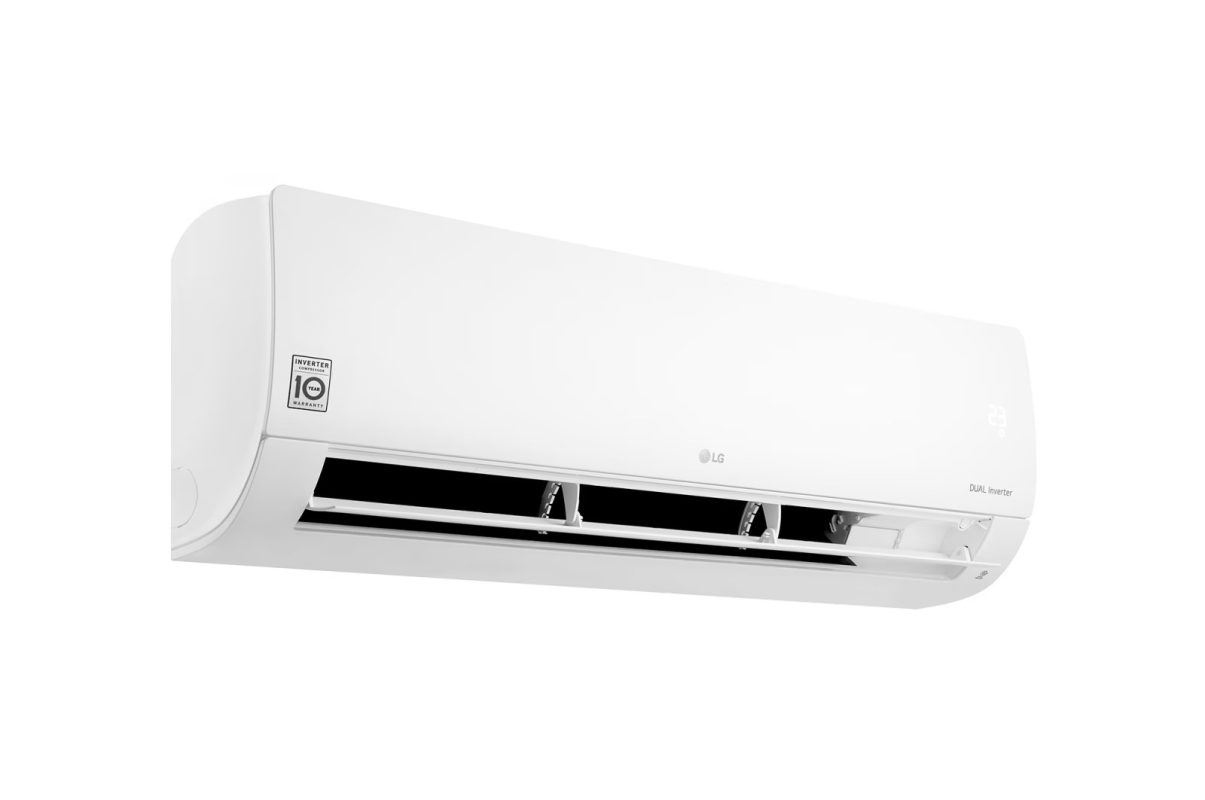

LG Split Air Conditioner 1.5 Ton I18CGH DUALCOOL Inverter
Specifications of LG Split Air Conditioner 1.5 Ton I18CGH DUALCOOL Inverter
- Dual Inverter Compressor™
- TUV Rheinland
- Energy Saving
- Fast Cooling
Cooling – Min ~ Rated ~ Max(kW) 1.08/5.28/5.36
Cooling – Min ~ Rated ~ Max(Btu/h) 3,685/18,000/18,300
Heating – Min ~ Rated ~ Max(kW) 1.08/5.42/6.10
Heating – Min ~ Rated ~ Max(Btu/h) 3,685/18,500/20,800
POWER INPUT
Cooling – Min ~ Rated ~ Max(W) 238/1,640/1,710
Heating – Min ~ Rated ~ Max(W) 238/1,500/1,800
RUNNING CURRENT
Cooling – Min ~ Rated ~ Max(A) 1.10/7.40/8.10
Heating – Min ~ Rated ~ Max(A) 1.10/6.82/8.52
EER
EER(W/W) 3.22
EER((Btu/h)/W) 10.98
COP
COP(W/W) 3.61
COP((Btu/h)/W) 12.33
POWER SUPPLY
Ø, V, Hz
1, 220 ~ 240, 50AVAILABLE VOLTAGE RANGE
Available Voltage Range(V) 187 ~ 276
POWER FACTOR
Cooling/Heating(%) 95/95
MOISTURE REMOVAL
Moisture Removal(l/h) 1.50
INDOOR
Air Flow Rate – Cooling, Max/H/M/L(m³/min) 19.3/13.5/12/9
Air Flow Rate – Heating, Max/H/M/L(m³/min) 20/14/13/9.5
Sound Pressure Level – Cooling, Max/H/M/L/SL(dB(A)) 55/45/43/38/32
Sound Pressure Level – Heating, Max/H/M/L(dB(A)) 56/45/43/38
Dimensions (W×H×D) – Net(mm) 998 × 345 × 210
Dimensions (W×H×D) – Shipping(mm) 1080 × 422 × 281
Weight – Net(kg) 11.5
Weight – Shipping(kg) 14.2
Exterior Color Code Munsell 7.5BG 10/2 (RAL 9016)
OUTDOOR
Air Flow Rate – Max(㎥/min) 38.0
Fan Motor Speed – Cooling, Min ~ Max(rpm) 200 ~ 900
Fan Motor Speed – Heating, Min ~ Max(rpm)) 200 ~ 900
Sound Pressure Level – Cooling, Rated(dB(A)) 54
Sound Pressure Level – Heating, Rated(dB(A)) 56
Dimensions (W×H×D) – Net(mm) 770 × 545 × 288
Dimensions (W×H×D) – Shipping(mm) 925 × 593 × 393
Weight – Net(kg) 34.2
Weight – Shipping(kg) 39.3
Max. Fuse Size(A) 20
Exterior Color Code Munsell 9.54Y 8.34/1.31 (RAL 9001)
Operation Range – Cooling(℃ DB) 18 ~ 48
Operation Range – Heating(°C DB) -5 ~ 24
Operation Range – Heating(℃ WB) -5 ~ 18
CIRCUIT BREAKER
Circuit Breaker(A) 20
POWER SUPPLY CABLE
Power Supply Cable(No. x mm2) 3 × 1.5
POWER SUPPLY TO UNIT
Power Supply to Unit Outdoor
POWER AND COMMUNICATION CABLE
Power and Communication Cable(No.×mm²) 4 × 0.75
PIPING
Size – Liquid(mm) Ø 6.35Size – Gas(mm) Ø 12.7
Connections Method – Indoor/Outdoor Flared/Flared
DRAIN HOSE SIZE
O.D, I.D(mm) 21.5, 16.0
BETWEEN INDOOR & OUTDOOR
Piping Length – Min/Standard/Max(m) 3.6/7.5/20
Piping Length – No Charge(m) 7.5
Max. Elevation Difference(m) 10
Piping Connection Heat Insulation Both liquid and Gas Pipes
REFRIGERANT
Type R410A
Pre Charge(g) 1230
Additional Charge(g/m) 20
Control Capillary
Global Warning Potential 2087.5
t-CO₂ eq 2.568
DEFROST METHOD
Defrost Method Reverse Cycle
TOOL CODE (CHASSIS)
Indoor/Outdoor SK/UL2
COMPRESSOR
Type Twin Rotary
Model GAT156MAD
Motor Type BLDC
Oil Type/Maker POE (RB68A)/Sun Oil or Jx Nippon
Oil Charge(cc) 400
FAN(INDOOR)
Type Cross Flow Fan
Motor Output(W) 30
FAN(OUTDOOR)
Type Propeller Fan
Motor Type BLDC
Motor Output (W) 43
Motor Insulation Class E
Motor Enclosure/Ingress Protection TEAO/IP23
HEAT EXCHANGER
Evaporator – Material, Tube/Fin Cu/Al
Evaporator – (ø x Row x Column x FPI x L) x Qty.(#1) (ø7 x 2 x 16 x 20 x 744) x 1
Evaporator – Corrosion Protection PCMEvaporator – Fin Type Slit
Condenser – Material, Tube/Fin Cu/AlCondenser – (ø x Row x Column x FPI x L) x Qty.(#1) (ø7 x 2 x 24 x 18 x 823) x 1
Condenser – Corrosion Protection Gold
Condenser – Fin Type Louver
