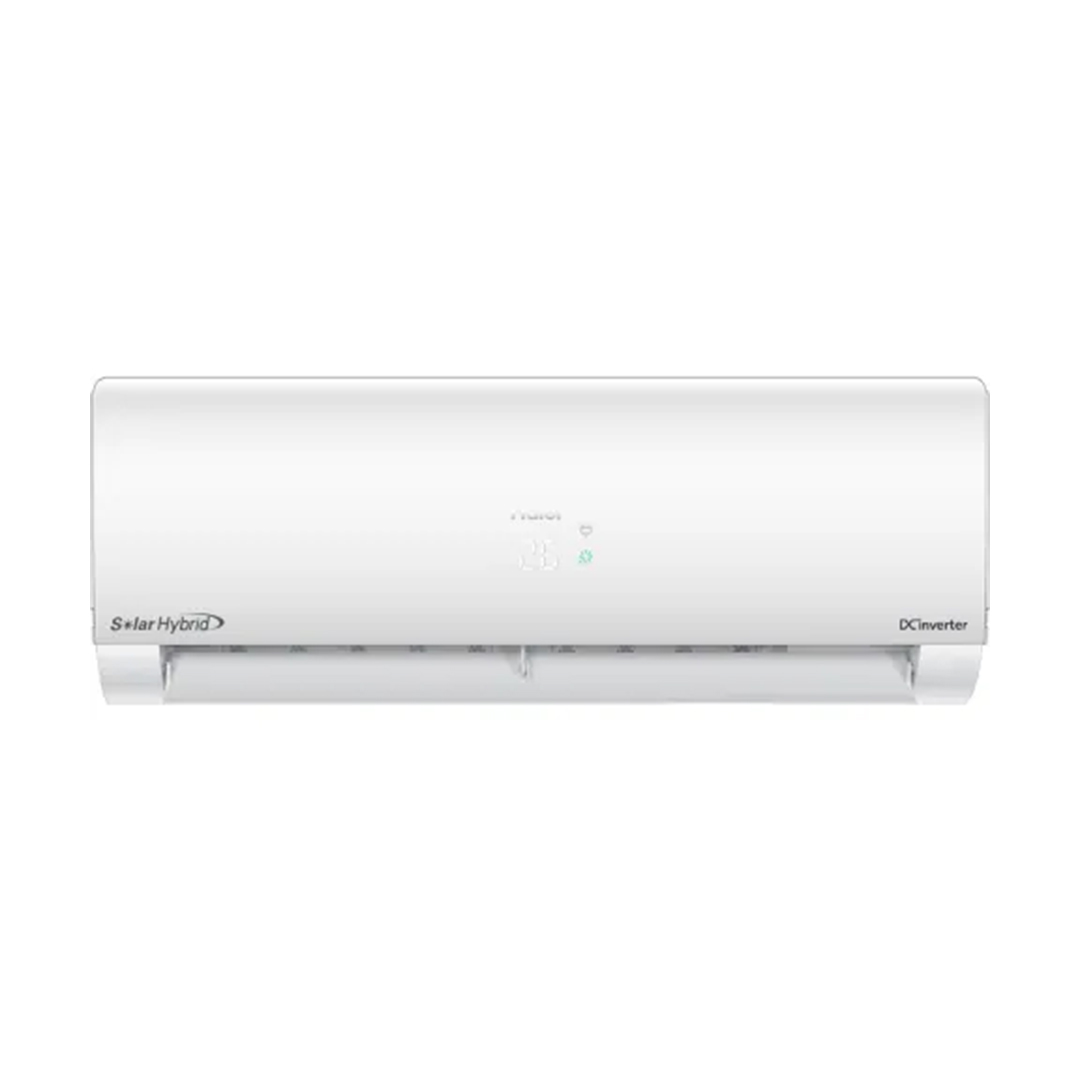

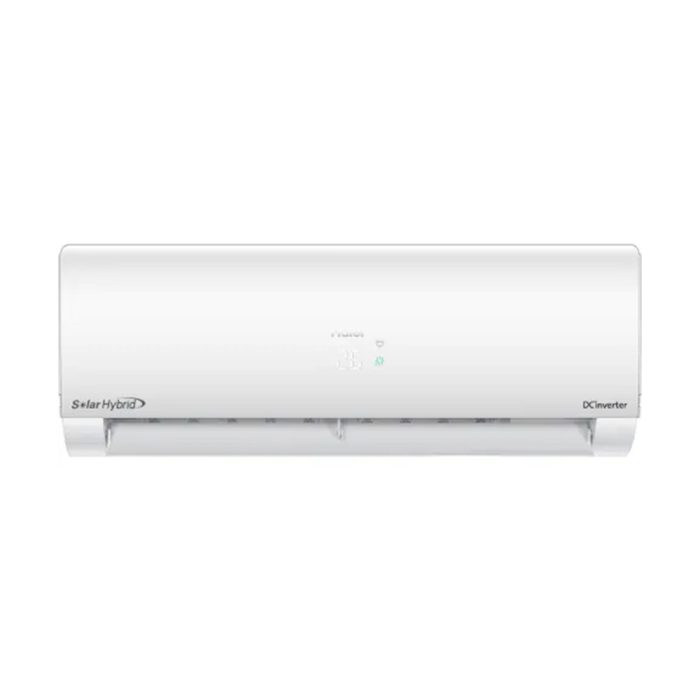

HAIER SOLAR HYBRID 3 HEAT AND COOL T3

Description

Performance Specifications

Capacity wise:
2-Ton

Category wise:
DC Inverter

Color:
White

Cooling Capacity BTU:
24500

Running Current Cooling (A):
3.27-12.13

Power input Cooling (KW):
820-2670

Heating Capacity BTU:
25000

Running Current Heating (A):
3.27-12.13

Power Input Heating (KW):
820-2670
Other Parameters

Input Power Supply (Ph, VAC, Hz):
820-2670

Air Flow Volume (m3/h):
1200

Refrigerant Type:
R-410A

Refrigerant Amount (G):
1600
Indoor & Outdoor Parameters

Indoor Net Dimension (L*W*H) mm³:
377/407/1810

Indoor Packing Net Dimension (L*W*H) mm³):
525/555/1935

Indoor Net Weight (kg):
34

Indoor Gross Weight (kg):
45

Outdoor Net Dimension (L*W*H) mm³:
820/300/610

Outdoor Packing Net Dimension (L*W*H) mm³:
955/418/670

Outdoor Net Weight (kg):
29

Outdoor Gross Weight (kg):
37
Features

Cooling:
Yes

Heating:
Yes

Dry:
Yes

Vertical Flapper Auto Swing:
Yes

Horizontal Louvers Auto Swing:
Yes

WiFi:
Yes

Self-Clean:
Yes

Anti-Corrosion:
Yes

Turbo Function:
Yes

UPS Enable:
No
Accessories

Installation Kit (Liquid side) Material*Length*Dia*Thickness (mm):
Copper * 2920*6*0.65 (6mm)

Installation Kit (Gas side) Material*Length*Dia*Thickness (mm):
Copper * 2920*12*0.65 (12mm)

Power Cable (Core*mm²):
3*2.5

Communication Cable b/w Indoor & Outdoor (Core*mm²):
4*2.5
Warranty

Compressor:
10 Years

PCB Kit:
4 Years

Parts:
1 Yers
